Works Components

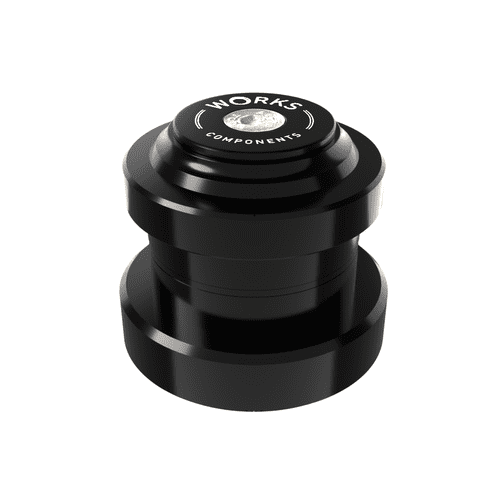

2.0 degree EC44-EC44 angled headset

2.0 degree EC44-EC44 angled headset

Normaler Preis $94.16 USD
Normaler Preis Verkaufspreis $94.16 USD
Sale Ausverkauft
Head tube length

Specifications:

  • Fits headtube internal diameter: Upper - 44mm: EC44
    Fits headtube internal diameter: Lower - 44mm: EC44
  • Upper cup insertion depth: 9mm
    Lower cup insertion depth: 10.5mm
  • Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 16mm
    Lower cup Stack height: 14mm
  • Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
    Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing
  • To suit tapered forks.
    If you are running a 1 1/8" fork you will need to purchase a reducer crown as well - this headset comes as standard with a crown race to suit tapered forks.
  • Split type 7075-T6 aluminium crown race for simple, tool free installation


Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment. Simply order the correct headset from the list of available head tube lengths below, if your frames head tube length is not listed please contact us.

Use our angle headset guide for information and guidance on choosing the right angle headset for you.

Want to add some sparkle to your headset? We also stock anodised top caps and bearing covers in a range of colours.

Click here for installation instructions.
